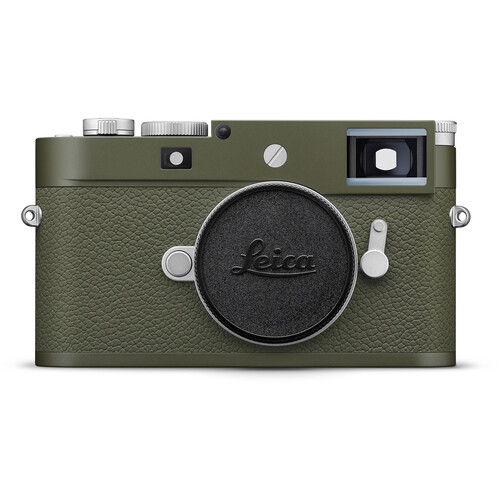

| Camera type | Digital system camera with rangefinder |
| Buffer memory | 3 GB
DNG™: 15 shots
JPG: > 100 shots |
| Storage medium | UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card (SDXC cards up to 2 TB)
Internal memory: 256 GB |
| Material | Black: full-metal housing made of magnesium and aluminum, leatherette cover
Silver: full-metal housing made of magnesium and brass, leatherette cover |
| Lens mount | Leica M bayonet with additional sensor for 6-bit encoding |
| Operating conditions | 0°C to +40°C |
| Interfaces | ISO accessory shoe with additional control contacts for Leica flash units and Leica Visoflex 2 viewfinder (optional accessory), USB 3.1 Gen1 Type-C |

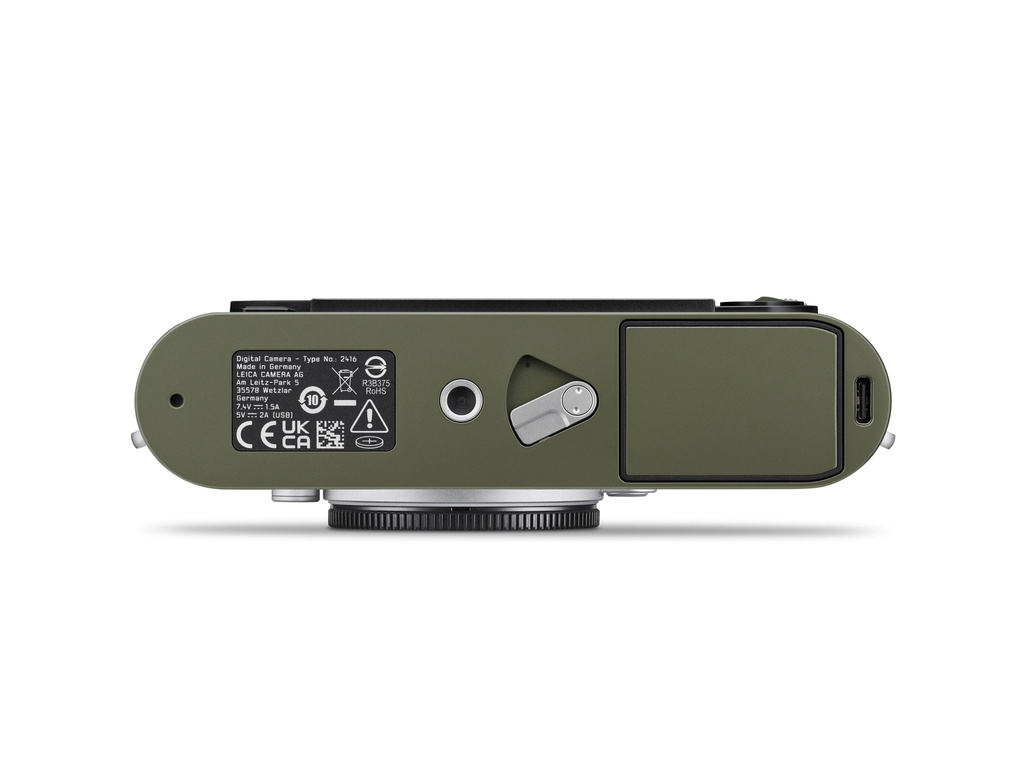

| Tripod thread | A 1⁄4 DIN 4503 (1⁄4”) with stainless steel in the base |
| Dimensions (WxHxD) | 139 x 38,5 x 80 mm |
| Weight | Black: approx. 530 g/455 g (with/without battery)
Silver: approx. 640 g/565 g (with/without battery) |
| Sensor | |
| Sensor size | BSI CMOS sensor, pixel pitch: 3.76 μm, 35 mm: 9528 x 6328 pixels (60.3 MP) |
| Processor | Leica Maestro series (Maestro III) |
| Filter | RGB color filter, UV/IR filter, no low-pass filter |
| File formats | DNG™ (raw data, loss-free compression), DNG + JPG, JPG (DCF, Exif 2.30) |
| Image resolution | DNG™
L-DNG 60.3 MP 9528 x 6328 Pixel | M-DNG 36.5 MP 7416 x 4928 Pixel | S-DNG 18.4 MP 5272 x 3498 Pixel
JPG
L-JPG 60.1 MP 9504 x 6320 Pixel | M-JPG 36.2 MP 7392 x 4896 Pixel | S-JPG 18.2 MP 5248 x 3472 PixelThe entire sensor surface will always be used irrespective of format and resolution. Digital Zoom 1.3x and 1.8x available (always based on L-DNG or L-JPG) |
| File size | DNG™
L-DNG approx. 70–120 MB | M-DNG approx. 40–70 MB| S-DNG approx. 20–40 MB
JPG
L-JPG approx. 15–30 MB | M-JPG approx. 9–18 MB | S-JPG approx. 5–9 MBJPG: depending on resolution and image content |
| Color depth | DNG™: 14 bit, JPG: 8 bit |
| Color space | sRGB |
| Viewfinder/LCD panel | |
| Viewfinder | Large, bright-line rangefinder with automatic parallax compensation, suitable for -0.5 dpt, optional corrective lenses available:
-3 to +3 dpt |
| Display | Four-digit digital display with items show on the top and bottom, Image field limiter: two lit frames: 35 mm + 135 mm,
28 mm + 90 mm, 50 mm + 75 mm (automatic switchover when lens is attached) |
| Parallax compensation | The horizontal and vertical difference between viewfinder and lens is compensated automatically in line with the relevant
focus setting. Congruence of viewfinder and actual image. The size of the bright-line frame matches the distance:
- at 2 m: the exact sensor size of approx. 23.9 x 35.8 mm
- at infinity: (depending on focal length) approx. 7.3% (28 mm) to 18% (135 mm)
- less than 2 m: less than sensor size |
| Viewfinder magnification | 0.73x (all lenses) |
| Large-base rangefinder | Split or superimposed image rangefinder shown as a bright field at the center of the viewfinder image |

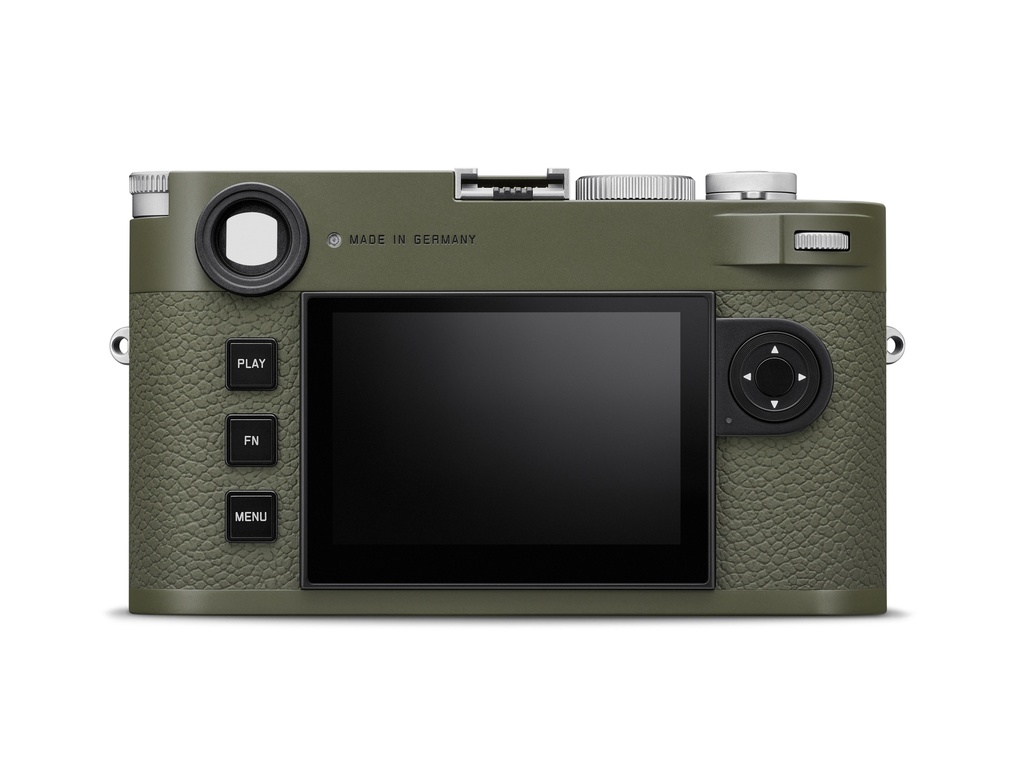

| LCD panel | 2.95” (Active Matrix TFT), sapphire glass, 2 332 800 dots, format 3:2, Touch control available |
| Shutter | |
| Shutter type | Electronically controlled focal plane shutter and electronic shutter function |
| Shutter speeds | Mech. shutter: 60 min to 1⁄4000 s
Electro. shutter function: 60 s to 1⁄16000 s
Flash Synch: up to 1⁄180 s
Optional noise reduction via additional “black picture” (can be disabled) |
| Shutter button | Two-stage
(Step 1: activation of the camera electronics including exposure metering and exposure lock, Step 2: release) |
| Self-timer | Delay time: 2 s or 12 s |
| Drive Mode | Single
Continuous - Low Speed (3 fps)
Continuous - High Speed (4.5 fps)
Interval shooting
Exposure Bracketing |
| Focusing | |
| Focus range | Rangefinder: 70 cm to ∞
Live View: depending on the attached lens |
| Focus mode | Manual (focus assist functions Magnification and Focus Peaking available) |
| Exposure | |
| Exposure metering | TTL (exposure metering through the lens), with working aperture |
| Metering principle | Exposure metering is done by the image sensor for all exposure metering methods (in Live View mode and in rangefinder mode) |
| Exposure metering methods | Spot, Center-Weighted, Highlight-Weighted, Multi-Field |
| Exposure modes | Aperture priority mode (A): automatic shutter speed control with manual aperture preselection
Manual (M): manual setting for shutter speed and aperture |
| Exposure compensation | ±3 EV in 1⁄3 EV increments |
| Automatic bracketing | 3 or 5 frames, graduations between shoots up to 3 EV, in 1⁄3 EV increments, additional optional exposure compensation:
up to ±3 EV |
| ISO sensitivity range | Auto ISO: ISO 64 (native) to ISO 50 000, also available in flash mode
Manual: ISO 64 to ISO 50 000 |
| Flash | |
| Flash unit connector | Via the accessory shoe |
| Metering principle | Flash exposure metering is done by the image sensor for all exposure metering methods
(in Live View mode and in rangefinder mode) |
| Flash sync time | 1⁄180 s, slower shutter speeds available, automatic switchover to TTL linear flash mode with HSS-compatible Leica
system flash units if sync time is undercut |
| Flash exposure metering | Using center-weighted TTL pre-flash metering with Leica flash units (SF 26, SF 40, SF 58, SF 60, SF 64) or with systemcompatible
flash units, remote controlled flash SF C1 |
| Flash exposure compensation | SF 40: ±2 EV in 1⁄2 EV increments
SF 60: ±2 EV in 1⁄3 EV increments
Other: ±3 EV in 1⁄3 EV increments |
Displays in flash mode
(in the viewfinder only) | Flash icon: connection of an external flash unit |
| Equipment | |
| WLAN | The Leica FOTOS app is required to use the WLAN function. The Leica app is available from the Apple App Store™ or the
Google Play Store™. 2.4 GHz/5 GHz* dual band IEEE802.11 a/b/g/n/ac Wave2 WLAN (standard WLAN protocol), encryption
method: WLAN-kompatible WPA™/WPA2™, access method: infrastructure mode |
| Bluetooth | Bluetooth v4.2 BR/EDR/LE, BR/DR-channel 1-79, LE-channel 0-39 (2402–2480 MHz) |
| GPS | Geotagging via Leica FOTOS app using Bluetooth |
| Menu languages | English, German, French, Italian, Spanish, Russian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Korean |
| Power supply | |
Rechargeable battery
(Leica BP-SCL7) | Li-Ion (Lithium-Polymer) rechargeable battery, rated voltage: 7.4 V / capacity: 1800 mAh, Charging voltage/current: DC
1000 mAh, 7.4 V, operating conditions: +10°C to +35°C (charging) / +0°C to +40°C (discharged), manufacturer: Fuji Electronics
(Shenzhen) Co., Ltd. made in China
Approx. 700 shots (in accordance with CIPA Standard in rangefinder mode), up to approx. 1700 shots (Leica adapted
shooting cycle) |
Charger
(Leica BC-SCL7) | Input: USB-C DC 5 V, 2 A, output: DC 8.4 V, 1 A, operating conditions: +10°C to +35°C, manufacturer: Dee Van Enterprises
Co., Ltd., made in China |
Switching adapter
(Leica ACA-SCL7) | Input: AC 110 V - 240 V ~ 50/60 Hz, 0.3 A, output: DC 5 V, 2 A, operating conditions: +10°C to +35°C, manufacturer: Dee
Van Enterprises Co., Ltd., made in China |
| USB power supply | When in standby mode or Off: USB charging function
When On: USB power supply and intermittent charging |
