| IMAGE
SENSOR |
|

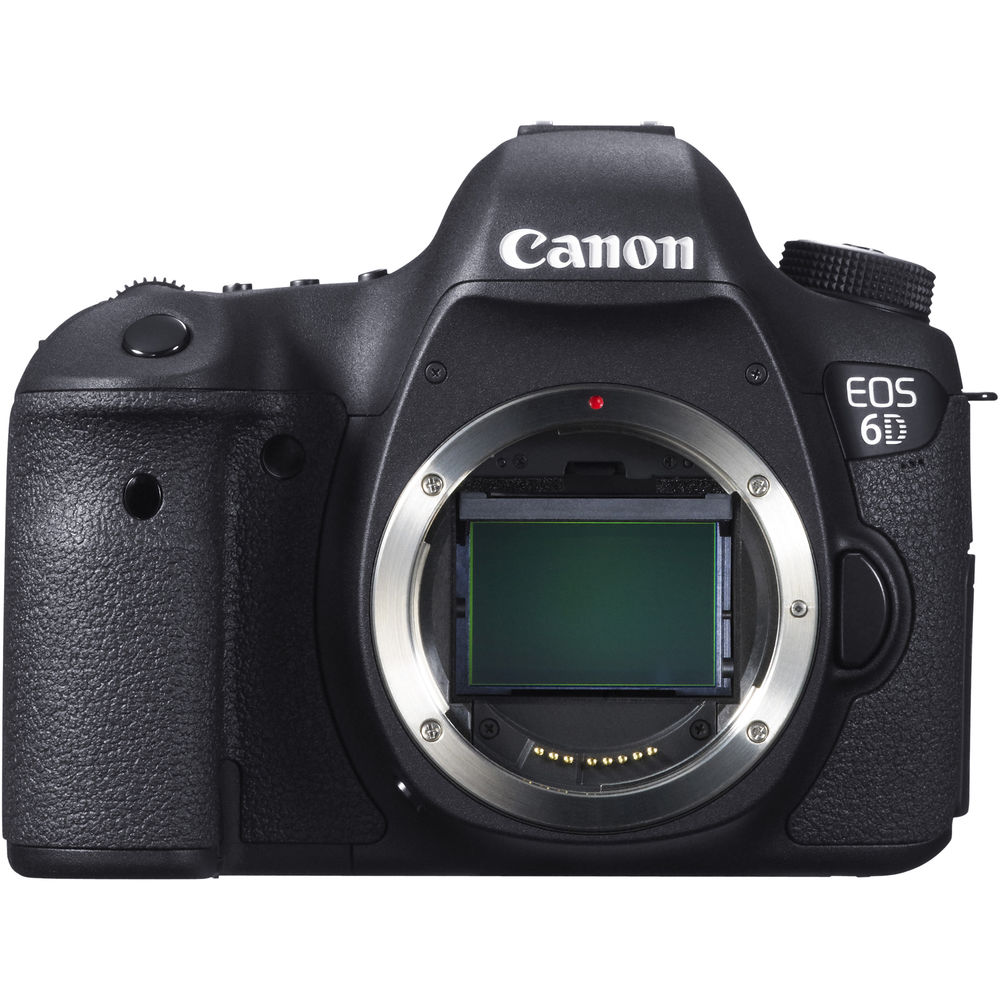

| Type |
36 x 24 mm CMOS |
| Effective Pixels |
Approx. 20.2 megapixels |
| Total Pixels |
Approx. 20.6 megapixels |
| Aspect Ratio |
3:02 |
| Low-Pass Filter |
Built-in/Fixed with fluorine coating |
| Sensor Cleaning |
EOS integrated cleaning system |
| Colour Filter Type |
Primary Colour |
| IMAGE PROCESSOR |
|
| Type |
DIGIC 5+ |
| LENS |
|

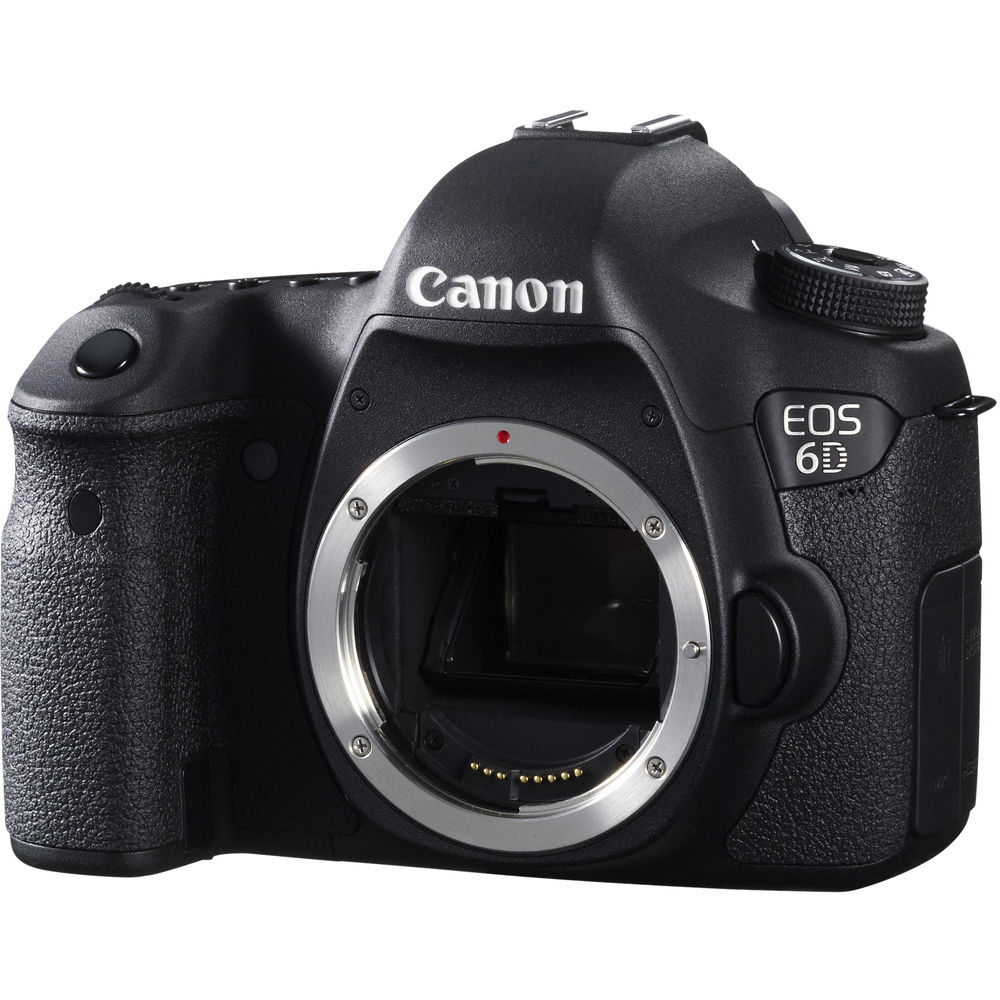

| Lens Mount |
EF (excludes EF-S lenses) |
| Focal Length |
Equivalent to 1.0x the focal length of the lens |
| FOCUSING |
|
| Type |
TTL-CT-SIR with a dedicated CMOS sensor |
| AF System/ Points |
11 points (f/5.6 cross type at centre, extra sensitivity at
f/2.8) |
| AF Working Range |
EV -3 - 18 (at 23°C & ISO100) |
| AF Modes |
AI Focus |
|
One Shot |
|
AI Servo |
| AF Point Selection |
Automatic selection |
|
Manual selection |
|
AF points can be selected separately for vertical and
horizontal shooting |
| Selected AF Point Display |
Superimposed in viewfinder and indicated on top LCD panel and
Quick Control screen |
| AF Lock |
Locked when shutter button is pressed half way in One Shot AF
mode or AF-ON button is pressed. |
| AF Assist Beam |
Emitted by an optional dedicated Speedlite |
| Manual Focus |
Selected on lens |
| AF Microadjustment |
C.Fn II-9 |
|
Adjust up to 40 lenses individually |
|
Adjustments remembered for lens by serial number |
|
Adjust all lenses by same amount |
| EXPOSURE CONTROL |
|
| Metering Modes |
TTL full aperture metering with 63 zone Dual Layer SPC |
| TTL full aperture metering
with 63 zone Dual Layer SPC |
(1) Evaluative metering (linked to All AF point) |
|
(2) Partial metering (approx. 8% of viewfinder at centre) |
|
(3) Spot metering (approx. 3.5% viewfinder at centre) |
|
(4) Centre weighted average metering |
| Metering Range |
EV 1 - 20 (at 23°C with 50mm f/1.4 lens ISO100) |
|
AE Lock |
| Manual: By AE lock button in
creative zone modes. |
|
| Exposure Compensation |
'+/-5 EV in 1/3 or 1/2 stop increments (can be combined with
AEB). |
| AEB |
2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments |
| ISO Sensitivity* |
Auto (100-25600), 100-25600 (in 1/3-stop or whole stop
increments) |
|
ISO can be expanded to L: 50, H1: 51200, H2: 102400 |
|
During Movie shooting: Auto (100-12800), 100-12800 (in
1/3-stop or whole stop increments) ISO can be expanded to H: 25600 |
| SHUTTER |
|
| Type |
Electronically-controlled focal-plane shutter |
| Speed |
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total
shutter speed range. Available range varies by shooting mode) |
| WHITE BALANCE |
|
| Type |
Auto white balance with the imaging sensor |
| Settings |
AWB, Daylight, Shade, Cloudy, Tungsten, White |
|
Fluorescent light, Flash, Custom, Colour Temperature Setting. |
|
White balance compensation: |
|
1. Blue/Amber +/-9 |
|
2. Magenta/ Green +/-9. |
| Custom White Balance |
Yes, 1 setting can be registered |
| WB Bracketing |
'+/-3 levels in single level increments |
|
3 bracketed images per shutter release. |
|
Selectable Blue/Amber bias or Magenta/ Green bias. |
| VIEWFINDER |
|
| Type |
Pentaprism |
| Coverage (Vertical/Horizontal) |
Approx. 97% |
| Magnification |
Approx. 0.71x¹ |
| Eyepoint |
Approx. 21mm (from eyepiece lens centre) |
| Dioptre Correction |
'-3 to +1 m-1 (dioptre) |
| Focusing Screen |
Interchangeable (3 types, optional). Standard Focusing Screen
Precision Matte Eg-A II |
| Mirror |
Quick-return half mirror (Transmission: reflection ratio of
40:60, no mirror cut-off with EF600mm f/4 or shorter) |
| Viewfinder Information |
AF information: AF points, focus confirmation light.¹ |
| AF information: AF points,
focus confirmation light.¹ |
Exposure information: Shutter speed, aperture value, ISO speed
(always displayed), AE lock, exposure level/compensation, spot metering
circle, exposure warning, AEB. |
| Exposure information: Shutter
speed, aperture value, ISO speed (always displayed), AE lock, exposure
level/compensation, spot metering circle, exposure warning, AEB. |
Flash information: Flash ready, high-speed sync, FE lock,
flash exposure compensation. |
| Flash information: Flash
ready, high-speed sync, FE lock, flash exposure compensation. |
Image information: Highlight tone priority (D+), maximum burst
(2-digit display), card |
| Image information: Highlight
tone priority (D+), maximum burst (2-digit display), card |
information |
| information |
Battery check: Composition information |
| Battery check: Composition
information |
Electronic level |
| Electronic level |
Warning symbol: Displayed if any of the following is set:
Monochrome, white balance |
| Warning symbol: Displayed if
any of the following is set: Monochrome, white balance |
correction, expanded ISO speed, or spot metering. |
| Depth of Field Preview |
Yes, with Depth of Field preview button. |
| Eyepiece Shutter |
On strap |
| LCD MONITOR |
|

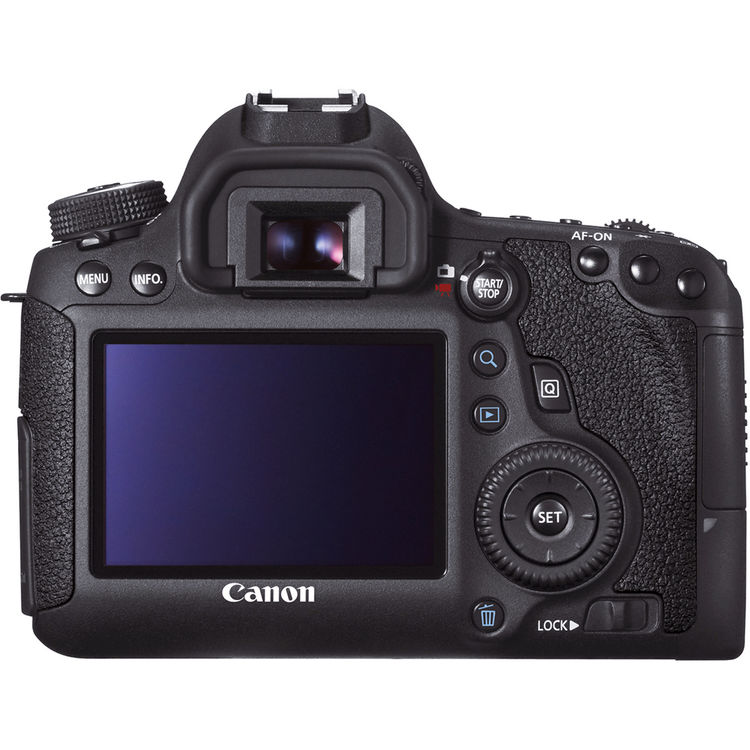

| Type |
7.7cm (3.0") Clear View TFT, approx. 1040K dots |
| Coverage |
Approx. 100% |
| Viewing Angle
(Horizontally/Vertically) |
Approx 170° |
| Coating |
Dual Anti-reflection |
| Brightness Adjustment |
Adjustable to one of seven levels |
| Adjustable to one of seven
levels |
|
|
Display Options |
|
(1) Quick Control Screen |
|
(2) Camera settings |
|
(3) Electronic Level |
| FLASH |
|
| Modes |
E-TTL II Auto Flash, Metered Manual |
| X-Sync |
1/180sec |
| Flash Exposure Compensation |
'+/- 3EV in 1/2 or 1/3 increments |
| Flash Exposure Bracketing |
Yes, with compatible External Flash |
| Flash Exposure Lock |
Yes |
| Second Curtain Synchronisation |
Yes |
| HotShoe/ PC Terminal |
Yes/ No |
| External Flash Compatibility |
E-TTL II with EX series Speedlites, wireless multi-flash
support (with optional accessory) |
| External Flash Control |
via camera menu screen |
| SHOOTING |
|
| Modes |
Scene Intelligent Auto, No Flash, Creative Auto, Portrait,
Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR
Backlight Control, Program AE , Shutter priority AE, Aperture priority AE,
Manual |
| Picture Styles |
Auto, Standard, Portrait, Landscape, Neutral, Faithful,
Monochrome, User Defined (x3) |
| Colour Space |
sRGB and Adobe RGB |
| Image Processing |
Highlight Tone Priority |
|
Auto Lighting Optimizer (4 settings) |
|
Long exposure noise reduction |
|
High ISO speed noise reduction (4 settings) |
|
Multi Shot Noise Reduction |
|
Auto Correction of Lens Peripheral illumination |
|
Chromatic aberration correction |
|
Resize to M, S1, S2 or S3 |
|
RAW image processing - during image Playback only |
|
Multiple exposure |
|
HDR Images |
| Drive Modes |
Single, Continuous, Self timer (2s+remote, 10s +remote),
Silent single shooting, Silent continous shooting |
| Continuous Shooting |
Max. Approx. 4.5fps. (speed maintained for up to 1250 images
(JPEG)¹²or 17 images (RAW))³ (with UHS-I card)² |
| LIVE VIEW MODE |
|
| Type |
Electronic viewfinder with image sensor |
| Coverage |
Approx. 100% (horizontally and vertically) |
| Frame Rate |
30 fps |
| Focusing |
Manual Focus (Magnify the image 5x or 10x at any point on
screen) |
| Manual Focus (Magnify the
image 5x or 10x at any point on screen) |
Autofocus: Quick mode, Live mode, Live Face detection mode |
| Metering |
Real-time evaluative metering with image sensor |
| Real-time evaluative metering
with image sensor |
Active metering time can be changed |
| Display Options |
Grid overlay (x3), Histogram, Aspect ratios, Electronic Level |
| FILE TYPE |
|
| Still Image Type |
JPEG: Fine, Normal (Exif 2.21 [Exif Print] compliant) / Design
rule for Camera File system (2.0), |
| JPEG: Fine, Normal (Exif 2.21
[Exif Print] compliant) / Design rule for Camera File system (2.0), |
RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd
edition), |
| RAW: RAW, M-RAW, S-RAW (14bit,
Canon original RAW 2nd edition), |
Digital Print Order Format [DPOF] Version 1.1 compliant |
| RAW+JPEG Simultaneous
Recording |
Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG
possible. |
| Yes, any combination of RAW +
JPEG, M-RAW + JPEG, S-RAW + JPEG possible. |
|
| JPEG: (L) 5472x3648, (M)
3648x2432, (S1) 2736x1824, (S2) 1920x1280, (S3) 720x480 |
RAW: (RAW) 5472x3648, (M-RAW) 4104x2736, (S-RAW) 2736x1824 |
| Movie Type |
MOV (Video: H.264 Intra frame / inter frame, Sound: Linear
PCM, recording level can be manually adjusted by user) |
| Movie Size |
1920 x 1080 (29.97, 25, 23.976 fps) intra or inter frame |
|
1280 x 720 (59.94, 50 fps) intra or inter frame |
|
640 x 480 (59.94, 50 fps) inter frame |
| Movie Length |
Max duration 29min 59sec |
| Folders |
New folders can be manually created and selected |
| File Numbering |
(1) Consecutive numbering |
|
(2) Auto reset |
|
(3) Manual reset |
| OTHER FEATURES |
|
| Custom Functions |
21 Custom Functions |
| Metadata Tag |
User copyright information (can be set in camera) |
| User copyright information
(can be set in camera) |
Image rating (0-5 stars), GPS coordinates. |
| LCD Panel / Illumination |
Yes / Yes |
| Water/ Dust Resistance |
Yes (equal to EOS-1N) |
| Sound Memo |
No |
| Intelligent Orientation Sensor |
Yes |
| Playback Zoom |
1.5x - 10x |
| Display Formats |
(1) Single image with information (2 levels) |
|
(2) Single image |
|
(3) 4 image index |
|
(4) 9 image index |
|
(5) Jump Display |
| Slide Show |
Image selection: All images, by Date, by Folder, Movies,
Stills, Rating |
| Image selection: All images,
by Date, by Folder, Movies, Stills, Rating |
Playback time: 1/2/3/5/10 or 20 seconds |
| Playback time: 1/2/3/5/10 or
20 seconds |
Repeat: On/Off |
| Histogram |
Brightness: Yes |
| Brightness: Yes |
RGB: Yes |
| Highlight Alert |
Yes |
| Image Erase/Protection |
Erase: Single image, All images in folder, Checkmarked images,
unprotected images |
| Erase: Single image, All
images in folder, Checkmarked images, unprotected images |
Protection: Erase protection of one image at a time |
| Menu Categories |
(1) Shooting menu (x6) |
|
(2) Playback menu (x3) |
|
(3) Setup menu (x4) |
|
(4) Custom Functions menu |
|
(5) My Menu |
| Menu Languages |
25 Languages |
|
English, German, French, Dutch, Danish, Portuguese, Finnish,
Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech,
Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese,
Traditional Chinese, Korean and Japanese |
| Firmware Update |
Update possible by the user. |
| INTERFACE |
|
| Computer |
Hi-Speed USB |

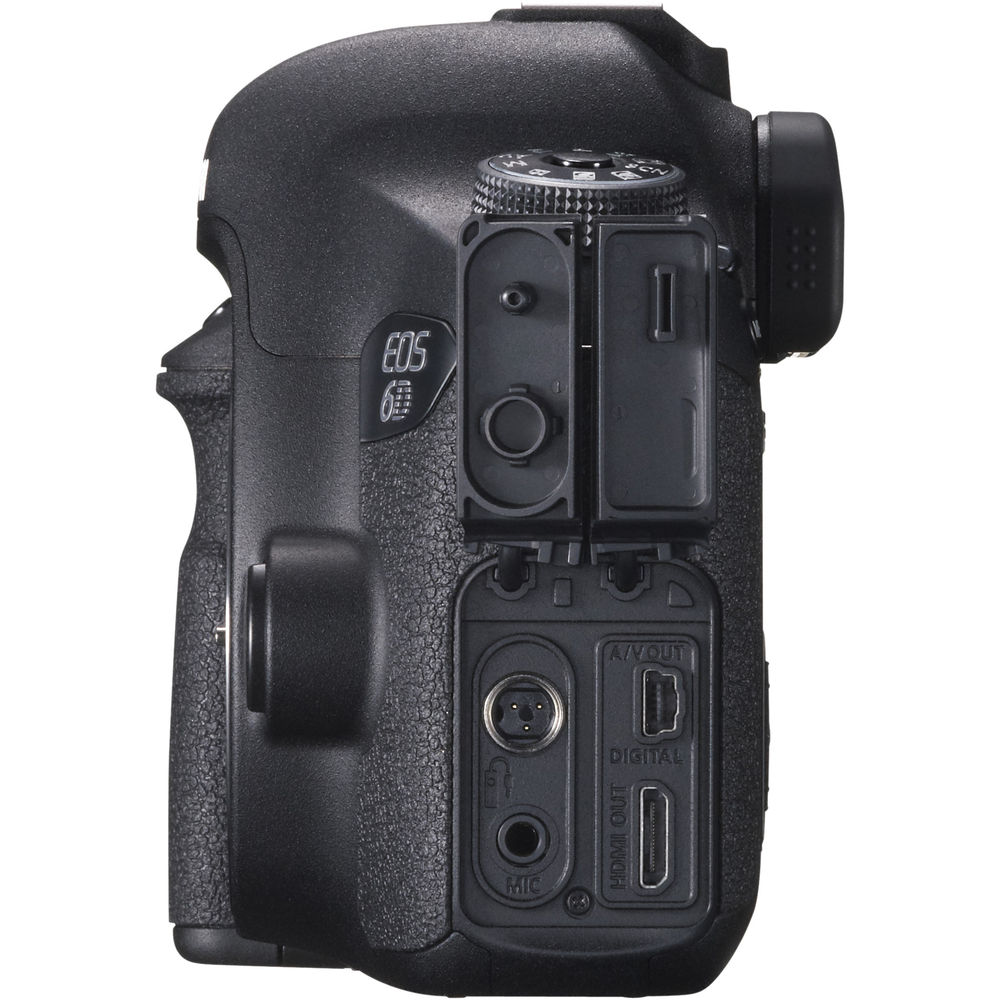

| Other |
HDMI mini output, Video output (PAL/ NTSC), External
microphone (Stereo mini jack) |
| DIRECT PRINT |
|
| Canon Printers |
Canon Compact Photo Printers and PIXMA Printers supporting
PictBridge |
| PictBridge |
Yes, PictBridge compliant (USB and Wireless LAN) |
| STORAGE |
|
| Type |
SD, SDHC or SDXC (UHS-I)card |
| SUPPORTED OPERATING SYSTEM |
|
| PC & Macintosh |
Windows XP inc SP3 / Vista inc SP1 and SP2 (excl. Starter
Edition) / 7 (excl. Starter Edition) |
| Windows XP inc SP3 / Vista inc
SP1 and SP2 (excl. Starter Edition) / 7 (excl. Starter Edition) |
OS X v10.6-10.7 (Intel processor required) |
| SOFTWARE |
|
| Browsing & Printing |
ImageBrowser EX |
| Image Processing |
Digital Photo Professional |
| Other |
PhotoStitch, EOS Utility (inc. Remote Capture), Picture Style
Editor |
| POWER SOURCE |
|
| Batteries |
Rechargeable Li-ion Battery LP-E6 (supplied) |
| Battery Life |
Approx. 1090 (at 23°C, AE 50%, FE 50%)¹ |
| Approx. 1090 (at 23°C, AE 50%,
FE 50%)¹ |
Approx. 980 (at 0°C, AE 50%, FE 50%) |
| Battery Indicator |
6 levels + percentage |
| Power Saving |
Power turns off after 1, 2, 4, 8, 15 or 30mins. |
| Power Supply & Battery
Chargers |
AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery
charger CBC-E6 |
| PHYSICAL SPECIFICATIONS |
|
| Body Materials |
Magnesium Alloy front and rear body covers. Polycarbonate top
cover |
| Operating Environment |
0 – 40 °C, 85% or less humidity |
| Dimensions (WxHxD) |
144.5 x 110.5 x 71.2 |
| Weight (Body Only) |
Approx. 755g (CIPA testing standard, including battery and
memory card) |
