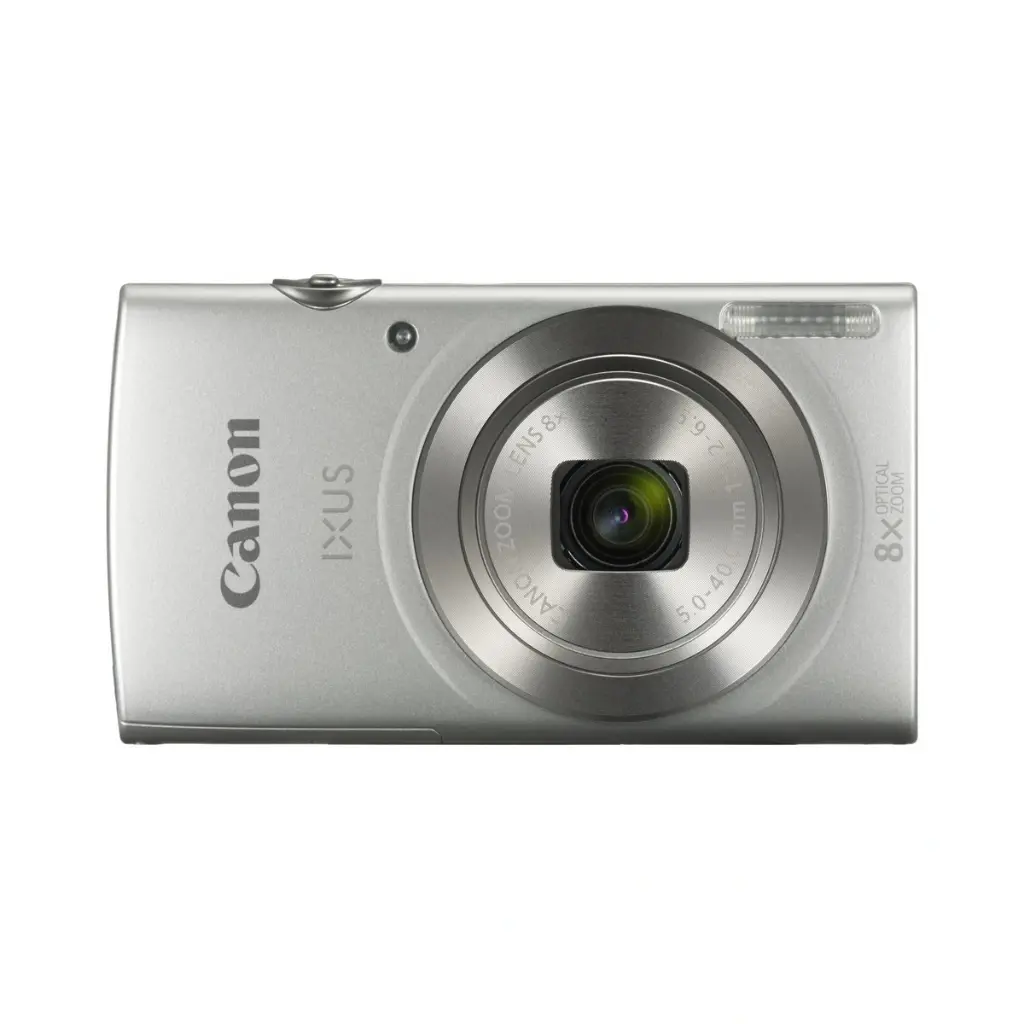

| IMAGE SENSOR |
| Type | 1/2.3 type CCD |
| Effective Pixels | Approx. 20.0M |
| Effective/Total Pixels | Approx. 20.5M |
| IMAGE PROCESSOR |
| Type | DIGIC 4+ |
| LENS |
| Focal Length | 5.0 – 40.0mm (35mm equivalent: 28 – 224mm) |
| Zoom | Optical 8x, ZoomPlus 16x, Digital approx. 4x, Combined approx. 32x |
| Maximum f/Number | f/3.2 – f/6.9 |
| Construction | 8 elements in 7 groups, (1 double-sided aspherical lens) |
|
| Image Stabilisation | Electronic Type (Digital IS Mode) |
| FOCUSING |
| Type | TTL |
| AF System/Points | A/AF (Face detection/9-point) 1-point AF, (Fixed to centre) |
|
| AF Modes | Single, Continuous (Auto Mode only), Servo AF/AE, Tracking AF |
| AF Assist Beam | Yes |
| Closest Focusing Distance | 1cm (W) from front of lens in Macro |
| EXPOSURE CONTROL |
| Metering Modes | Evaluative (linked to Face Detection AF Frame), Centre-Weighted average, Spot (centre) |
|
| Exposure Compensation | +/- 2 EV in 1/3 stop increments, I-Contrast for Automatic dynamic range correction |
|
| ISO Sensitivity | Auto, 100, 200, 400, 800, 1600, Auto ISO: 100 – 800 |
|
| SHUTTER |
| Speed | 1 – 1/2000 sec. (Auto Mode) |
| 15 – 1/2000 sec. (total range – varies by shooting mode) |
| WHITE BALANCE |
| Type | TTL |
| Settings | Auto (including Face Detection WB) Daylight, Cloudy, Tungsten, Fluorescent H, Custom. |
| LCD MONITOR |

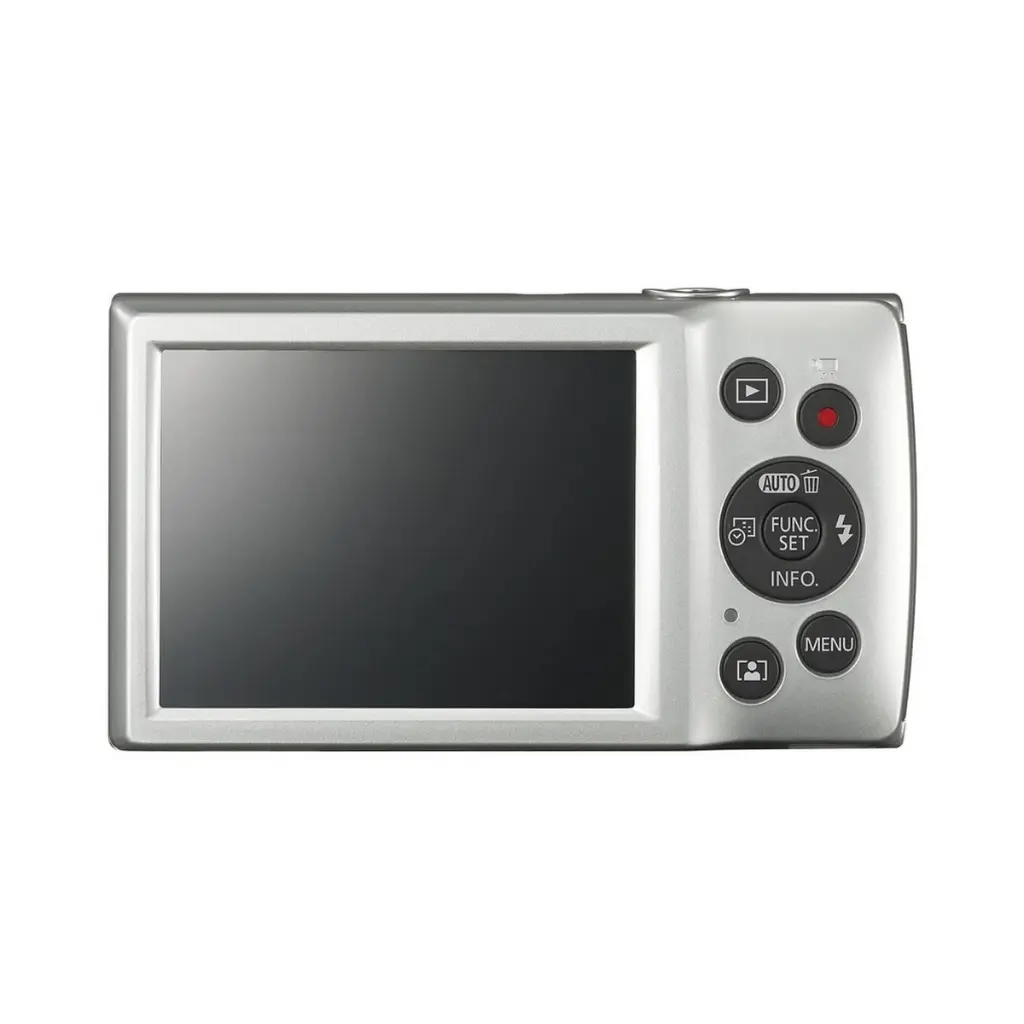

| Monitor | 6.8cm (2.7”) LCD (TFT) Approx. 230,000 dots |
| Coverage | Approx. 100% |
| Brightness | Adjustable to one of five levels. Quick-bright LCD available via holding INFO button |
| FLASH |
| Modes | Auto, Manual Flash, On/Off, Slow Synchro |
| Slow Sync Speed | Yes. Fastest Speed 1/2000 sec. |
| Red-Eye Reduction | Yes |
| Flash Exposure Compensation | Face Detection FE |
| Built-in Flash Range | 50cm – 3.0m (W)/1.3 – 1.5m (T) |
| SHOOTING |
| Modes | Smart Auto (32 scenes detected), P, Portrait, Live View Control, FaceSelf-Timer, Low Light (5.0 MP), Fisheye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long Shutter |
| Drive Modes | Easy Auto activated by default |
| Single, Continuous, Self-Timer |
| Continuous Shooting | Approx. 0.8 shots/sec. |
| RECORDING PIXELS/COMPRESSION |
| Image Size | 4:3 – (L) 5152 x 3864, (M1) 3048 x 2730, (M2) 2048 x 1530, (S) 640 x 480, 16:9/ W – (L) 5152 x 2896 |
|
| |
| Resize option available in Playback |
| Compression | Fine |
| Movies | (HD) 1280 x 300, 30 fps, (L) 640 x 480, 29.97 fps |
| Movie Length | (HD) Up to 4 GB or 29 min. 59 sec. |
| (L) up to 4 GB or 1 hour |
| FILE TYPES |
| Still Image Type | JPEG Compression, (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format (DPOF) Version 1.1 compliant |
| Movies | MP4 [Video: MPEG4-AVC/H.264, Audio: MPEG4 AAC-LC (monaural)] |
| OTHER FEATURES |
| Red-Eye Correction | Yes |
| Intelligent Orientation Sensor | Yes, with Auto-Rotate |
| Histogram | Yes, during playback |
| Playback Zoom | Approx. 2x – 10x |
| Self-Timer | Approx. 2 or 10 sec. or Custom |
| Menu Languages | English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified Chinese, Chinese (traditional), Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Ukrainian, Romanian, Farsi, Malaysian, Hindi, Indonesian, Vietnamese, Hebrew |
| INTERFACE |
| Computer | Hi-Speed USB Composite connector (mini-B compatible) |
| Other | A/V output, dedicated connector (PAL/NTSC) |
| MEMORY CARD |
| Type | SD, SDHC, SDXC |
| SUPPORTED OPERATING SYSTEM |
| PC & Macintosh | Windows 10/8.1/8/7 SPI, Mac OS X 10.0/10.10.10/10.11/10.12 |
|
| SOFTWARE |
| Other | Camera/Window DC |
| POWER SOURCE |

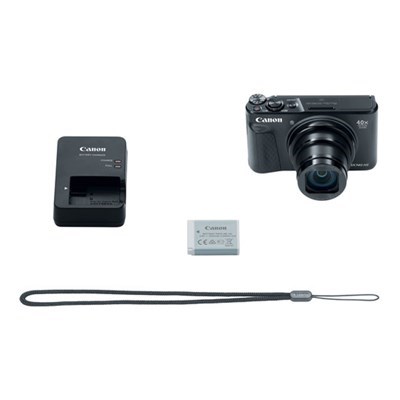

| Batteries | Rechargeable Li-Ion Battery NB-11L/NB-11LH (NB-11LH Battery and Charger supplied) |
| Battery Life | Approx. 210 shots, Eco Mode: Approx. 285 shots, Playback Mode: Approx. 240 min |
| |
| PHYSICAL SPECIFICATIONS |
| Operating Environment | 0 – 40°C, 10 – 30% humidity |
| Dimensions (W x H x D) | 95.2 x 30.3 x 22.1 mm |
| Weight | Approx. 126g (with battery and memory card) |
